Kleenoil Filter Units
You can find Kleenoil Filter details at www.kleenoil.ca
Please contact Belvedere Solutions today to discover the benefits of using Kleenoil bypass filter technology
Ask Belvedere Solutions about Kleenoil’s Lifetime Warranty

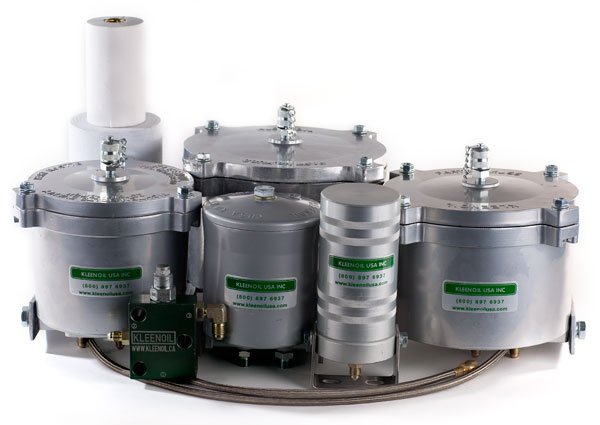

Filter units

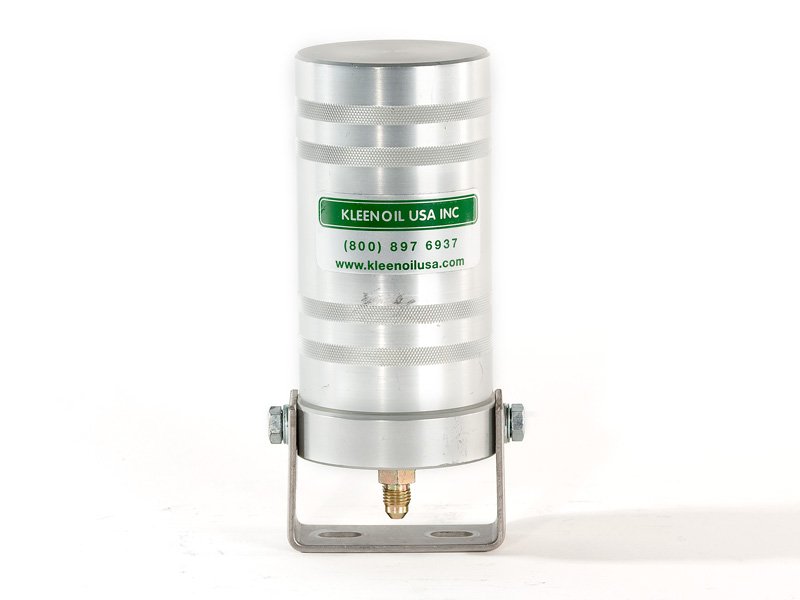

KU06/9758
Light-Duty Filter
For engines with an oil pan up to 6 litres / 1.6 gallons
Uses Light Duty Cartridge (CodeKF06)

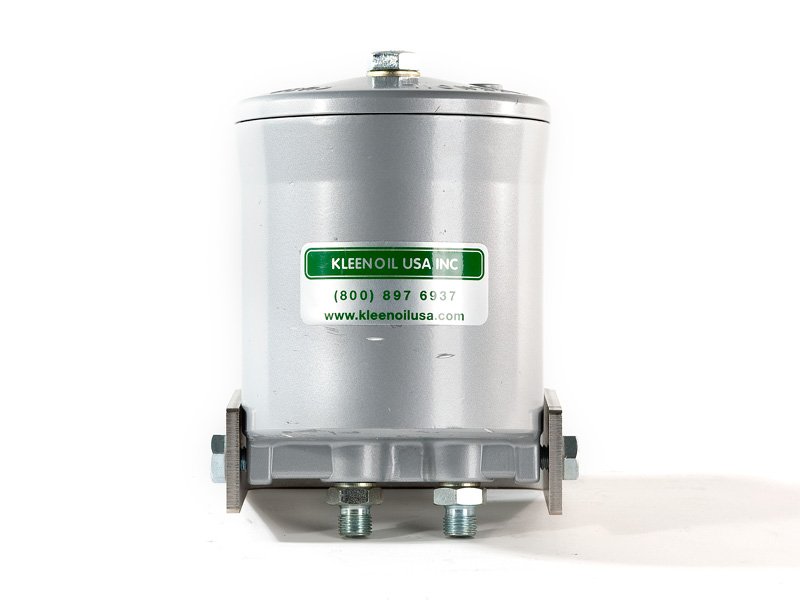

KU16/9768
Light-Duty Filter
For engines with an oil pan up to 16 liters / 3 gallons
Uses Light Duty Cartridge (Code KF16)

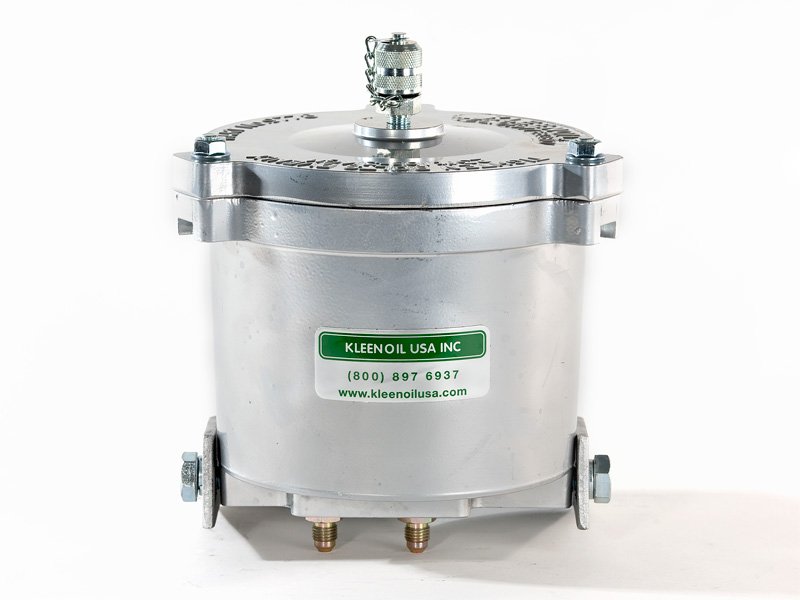

KU50/9778
Heavy Duty Filter
For engines with an oil pan up to 50 liters / 9 gallons
For hydraulic systems with tanks up to 540 liters / 120 gallons
Uses Heavy Duty Cartridge (Code KF50)
Our most popular filter unit

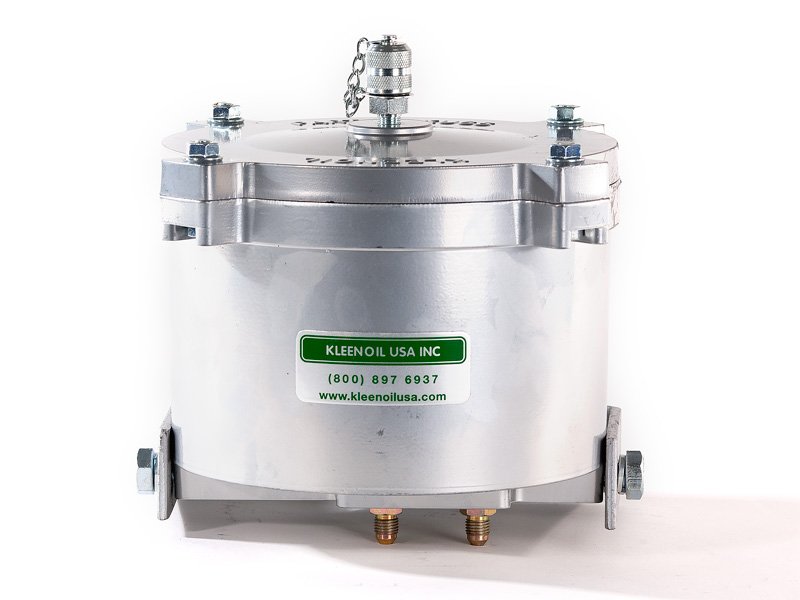

New KU65
Heavy Duty Filter
For engines with an oil pan up to 65 liters / 15 gallons
For hydraulic systems with tanks up to 1000 liters / 250 gallons
Uses Heavy Duty Cartridge (Code KF65)

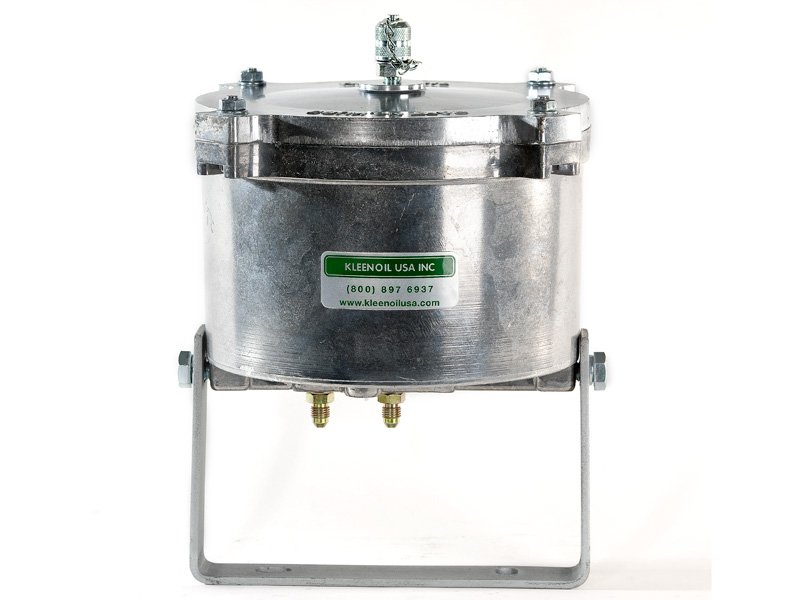

KU85/9788
Super Duty Filter
For engines with an oil pan up to 85 liters / 17.6 gallons
For hydraulic systems with tanks up to 1360 liters / 300 gallons
Uses Super Duty Cartridge (Code KF85)

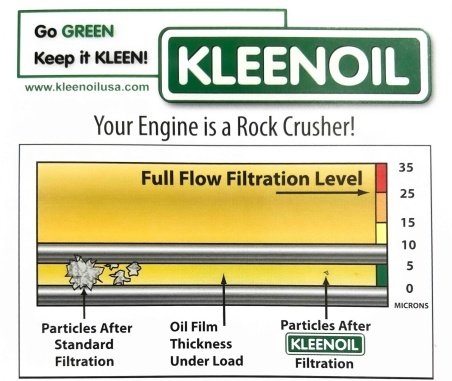

Pro Trucker Magazine Ad
WHAT IS By-Pass Filtration:
The Kleenoil Bypass Filter System is a bypass oil filtration system that passes only a small portion of the total oil flow through a very dense filter cartridge at about 2 to 3 quarts per minute. At this speed, it is possible to remove particles down to 1 micron (3 absolute) and remove water, greatly decreasing engine wear and prolonging oil life. Kleenoil can eliminate water and particle contamination, and is applicable to engines as well as hydraulic systems.The Kleenoil filtration unit is made of cast aluminum with a galvanized steel mounting bracket. There are five basic sizes. It is connected to the engine lubricating oil circulating system in a bypass loop using high pressure braided hose and fittings to SAE standards.
HOW IT WORKS

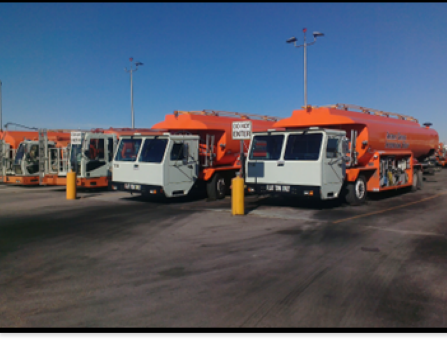

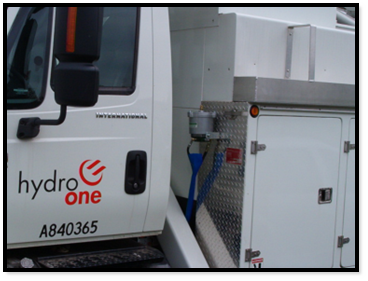

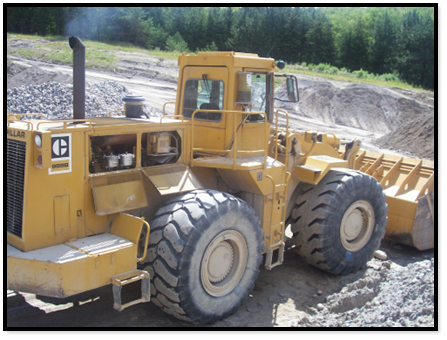

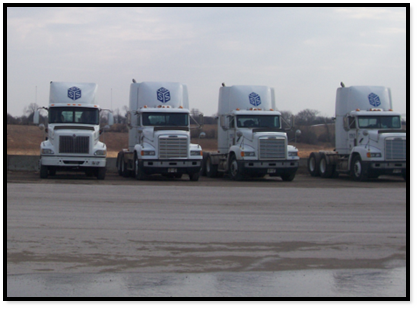

Applications:

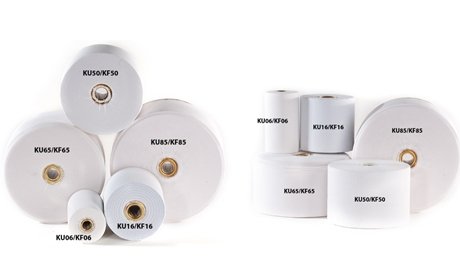

Kleenoil Filter cartridges (sold by the case only)
Cartridge KF16
Engine Sump Capacity Up to 16 Quarts
Hydraulic Tank Capacity Up to 60 Gallons
Water Retention <0.05% 0.07 Gallons
Height 6.25 inches 4.13 inches
Diameter 4.63 inches 4.13 inches
Weight (Cartridges+/- 5%) 7.1 ounces
Cartridge KF50
Engine Sump Capacity Up to 50 Quarts
Hydraulic Tank Capacity Up to 200 Gallons
Water Retention <0.05% 0.12 Gallons
Height 6.50 inches 3.83 inches
Diameter 7.25 inches 5.75 inches
Weight (Cartridges+/- 5%) 1 lb 4.3 ounces
Cartridge KF65
Engine Sump Capacity Up to 65 Quarts
Hydraulic Tank Capacity Up to 300 Gallons
Water Retention 0.20 Gallons
Height 6.25 inches 4.13 inches
Diameter 9.50 inches 7.25 inches
Weight (Cartridges+/- 5%)1 lb 5.7 ounces
Cartridge KF85
Engine Sump Capacity Up to 85 Quarts
Hydraulic Tank Capacity Up to 400 Gallons
Water Retention 0.26 Gallons
Height 6.63 inches 4.13 inches
Diameter 10.00 inches 7.75 inches
Weight (Cartridges+/- 5%)1 lb 12.5 ounces
Kleenoil Filter Cartridges Specifications Table

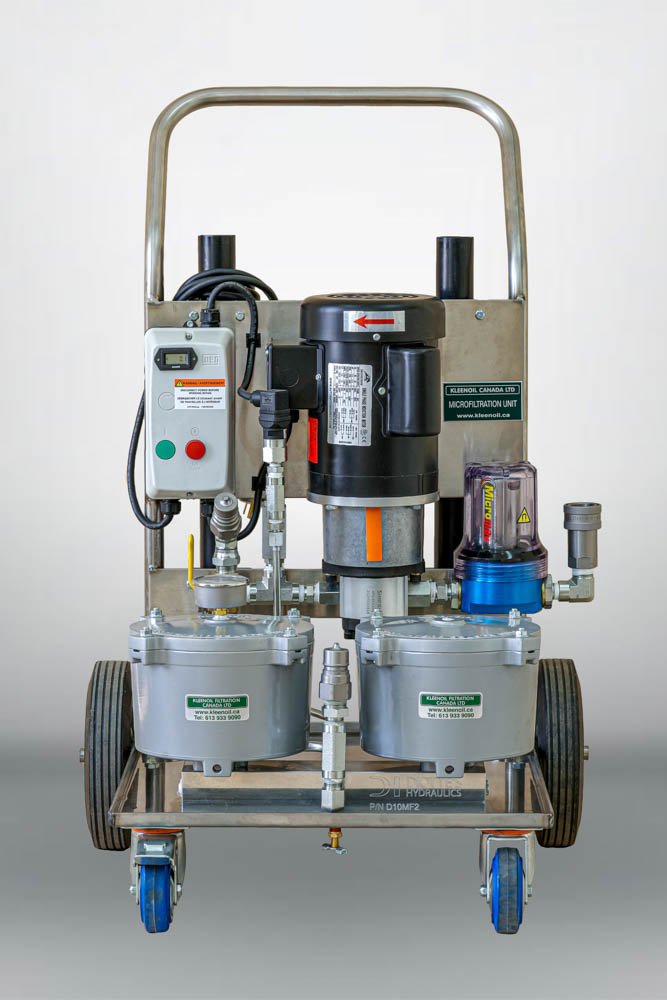

The Kleenoil Mobile Filtration Unit
is a free-standing, off-line fluid cleaning rig and can be used as multi-purpose fluid cleaning and transfer machines. It is ideal for cleaning most hydraulic, gear, and transmission fluid reservoirs, and, because of its portable design, it can be used for fuel tank purging on trucks, construction equipment, and boats as well as for oil and fuel transfer and rotational cleaning of factory and industrial equipment.
MFU-1
Single Filter Using MFU 1cleans 300-400 litres (100 gallons) per hour
MFU-2 Twin Filter, High Speed
Using AW-32 cleans 1000-1250 litres (260-330 gallons) per hour
Using Diesel cleans 1100-1400 litres (315-420 gallons) per hour
MFU-2
Twin Filter Using AW-32 cleans 400-600 litres (100-140 gallons) per hour
Using Diesel cleans 700 litres (175 gallons) per hour
MFU-4 Four Filter, High Speed
Using AW-32 cleans 1300-1900 litres (340-500 gallons) per hour
Using Diesel cleans 1900-2800 litres (500-1000 gallons) per hour
MFU 4
Four Filter Using AW-32 cleans 1000-1200 litres (275-325 gallons) per hour
Using Diesel cleans 1300 litres (250 gallons) per hour
